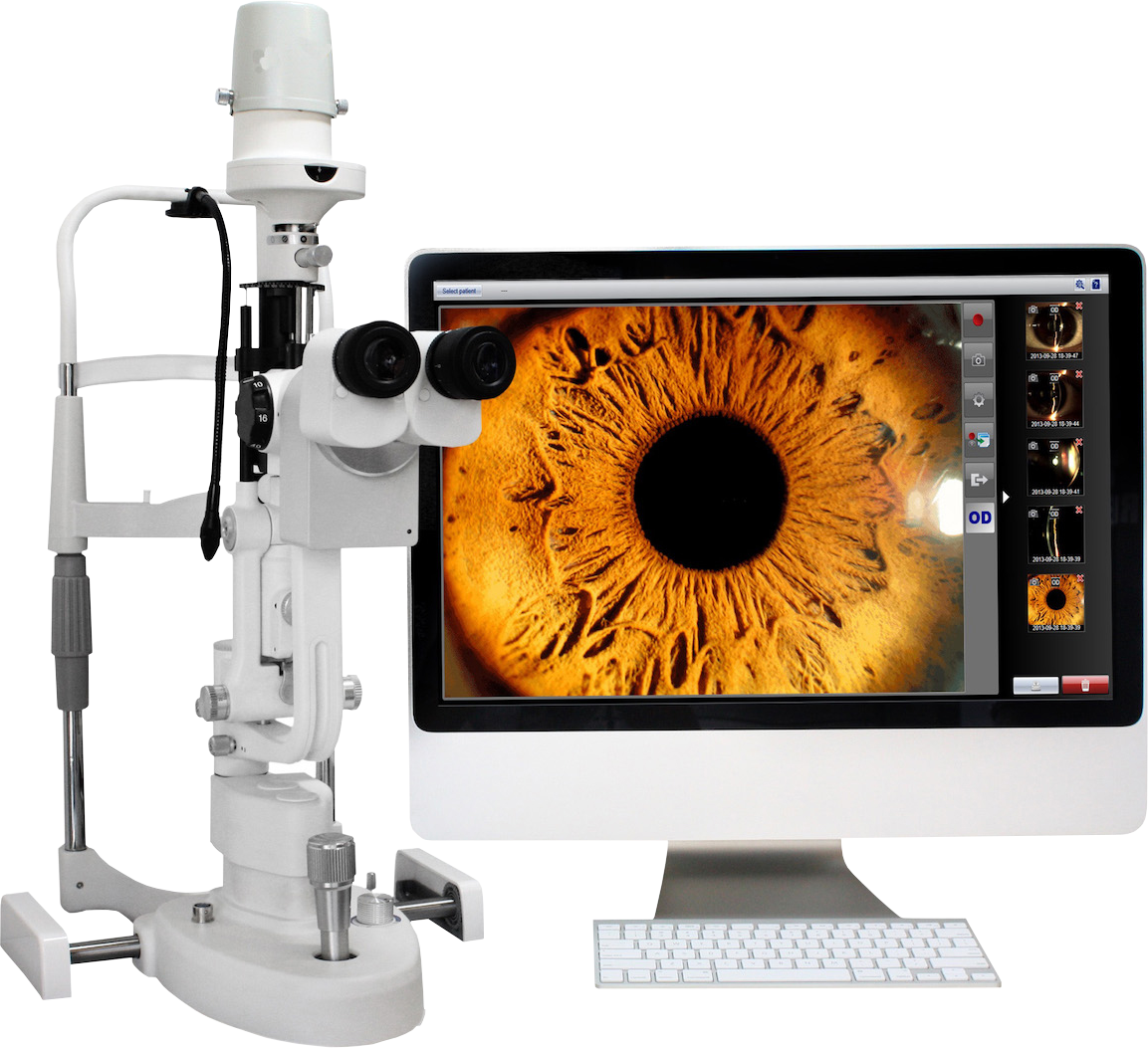

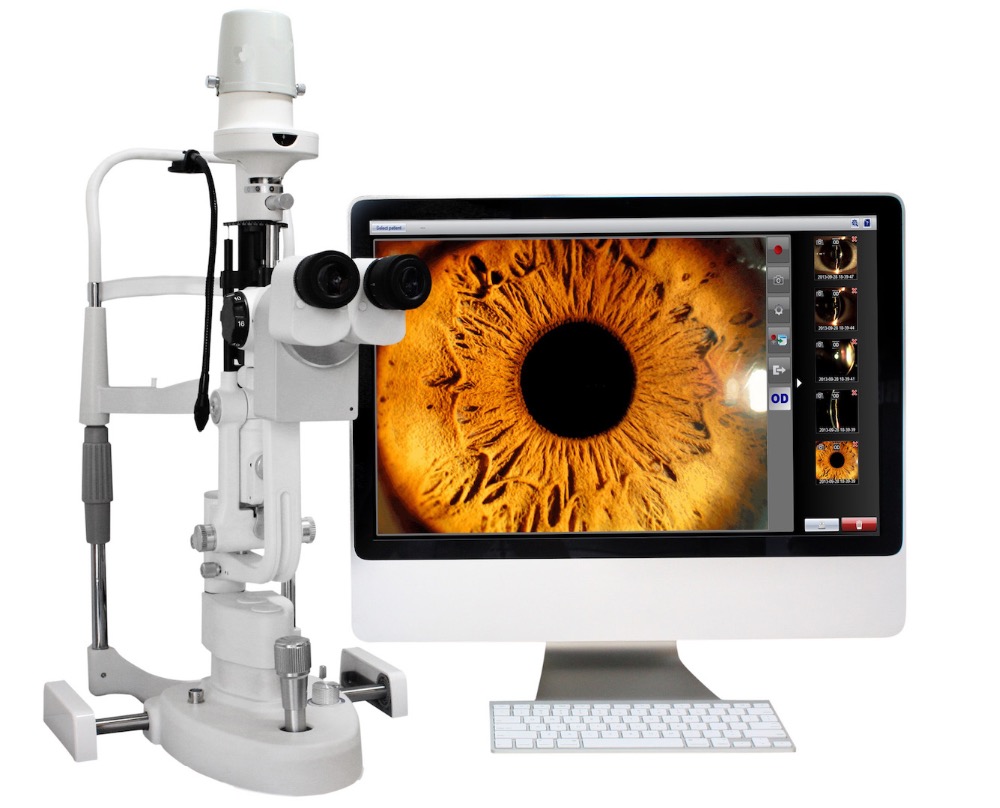

PHOENIX

Request A Quote →

Features:

1. Compatible with the majority brand slit lamps Unique mechanical design makes it perfectly adapted to the majority brand slit lamp available in the market

2. Easy installation Just install it onto the binocular head of slit lamp, and then attach your iphone onto the Phonto, it is ready to use.

3. Bluetooth capture. The most popular solution in application, no interference, real time fast reaction, and precise paring.

4. No PC needed. Due to the utilization of the phone, no need to install software onto computers anymore. Save you a lot of work.

5. Export. Pictures, videos, and professional report. Anything you need is built in there.

6. app download is simple Specially designed App and APK are available for download from the store for free.

7. High resolution:

5 Megapixels resolution and 1/2.5 inch CMO produces High definition image. With CMOS leaner array, all small objects are shown clearly.

8. Easy USB transfer

One power cable and one data line will produce data transmission quickly and easily. Neither hardware nor computer configuring is required.

9. Wireless button

2.4Ghz wireless solution, no aiming, fast reaction, and stable performance.

10. Smart Auto Exposure

Professional solution makes the camera exposure more accurate and clear.

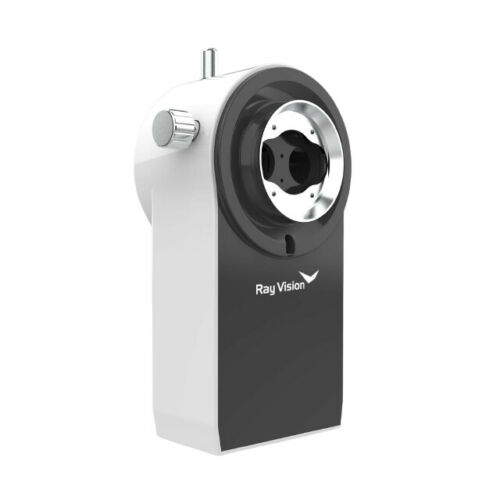

11. Compact Size

The most compact imaging module (L) 5.9” x (W)3.2” makes it installed conveniently and operated easily.

12. User-Friendly Interface

Simple design style and friendly interface helps operators handle it quickly and efficiently.

13 .Centralized Management

This platform supports integrated function print.

14. Practical image Processing

This unique feature can meet the operators demand

Specifications:

Image Sensor:    1/2.5” (4:3) Progressive High-Speed CMOS

Image Size:        Up to 5 meg (2592 X 1944) pixels

Cell Size:            2.2um X 2.2um

Resolution Dept: 8bit RGB Bayer Pattern

Transmit Method: USB 2.0

Transmit Speed:  Up to 480Mbps

Frame Rate:        Up to 30Fpsa

Photograph:         External Trigger or Software Trigger (Wireless: 2.4Ghz)

Dimension:          L150mm X W82mm X H60mm

Power Consumption: Less than 1.5
