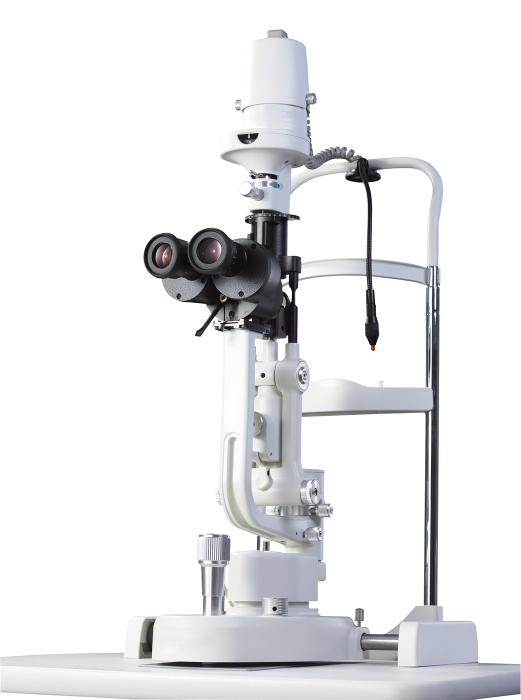

SL-R2 Slit Lamp

DWL

A formula created by researchers at Tufts Medical Center will predict how likely it is for individuals with certain genetic profiles and lifestyle behaviors to develop advanced age-related macular

●Classical Haag-Streit type slit lamp.

●The 14mm aperture is very fit for eye pre-checking of wearing contact lenses and the corneal foreignobject examination.

●6V20W Osram halogen lamp is employed, which provides strong and stable lighting for observations.

●The slit angle is adjustable from 0 to 180°.

●Horizontal scanning is workable.

●Heat absorbing filter, ND filter, Red-free filter and Cobalt Blue fiter are provided.


Microscope



Type

Converging Stereoscope

Magnification Change

 2 steps by Objective Lens Rotation

Total Magnification

 10X, 16X

Eyepieces

12.5X

Angle between Eyepieces

13°



 Pupillary Adjustment

52 mm-78 mm

Diopter Adjustment

+5.0 D ~ -8.0 D

Field of View

Φ18 mm(10X), Φ14.5 mm(16X)



Instrument Base





Longitudinal Movement

110mm

Lateral Movement





 110 mm



 Vertical Movement

30mm



 Fine Base Movement

15mm





Chin-rest





Vertical Movement

80mm



 Fixation

LED







Slit Illumination



 Slit Width

0~14 mm continuous (slit becomes a
    circle at 14 mm)



 Slit Length



 0~14 mm continuous



 Aperture Diameter

Φ14 mm, Φ10 mm, Φ5 mm, Φ3 mm,
    Φ2 mm, Φ1 mm, Φ0.2 mm

Slit Angle



 0°~180°

Slit Inclination



 5°, 10°, 15°, 20°

Filters

Heat-absorbing filter, ND  filter,
Red-free filter, Cobalt Blue filter

Lamp



6V/20W Halogen Lamp

Luminance

≥50 KLX





Power Supply



Input voltage

 220 V/110 V±10%



 Input frequency

50 Hz/60 Hz

Power Consumption

30 VA (max)

Output voltage

Lamp 6 V, Fixation 3 V





Packaging



Dimension





 770 mm x 470 mm x 570 mm(L/W/H)



 Weight

Gross weight 26kg
Net weight 18kg
